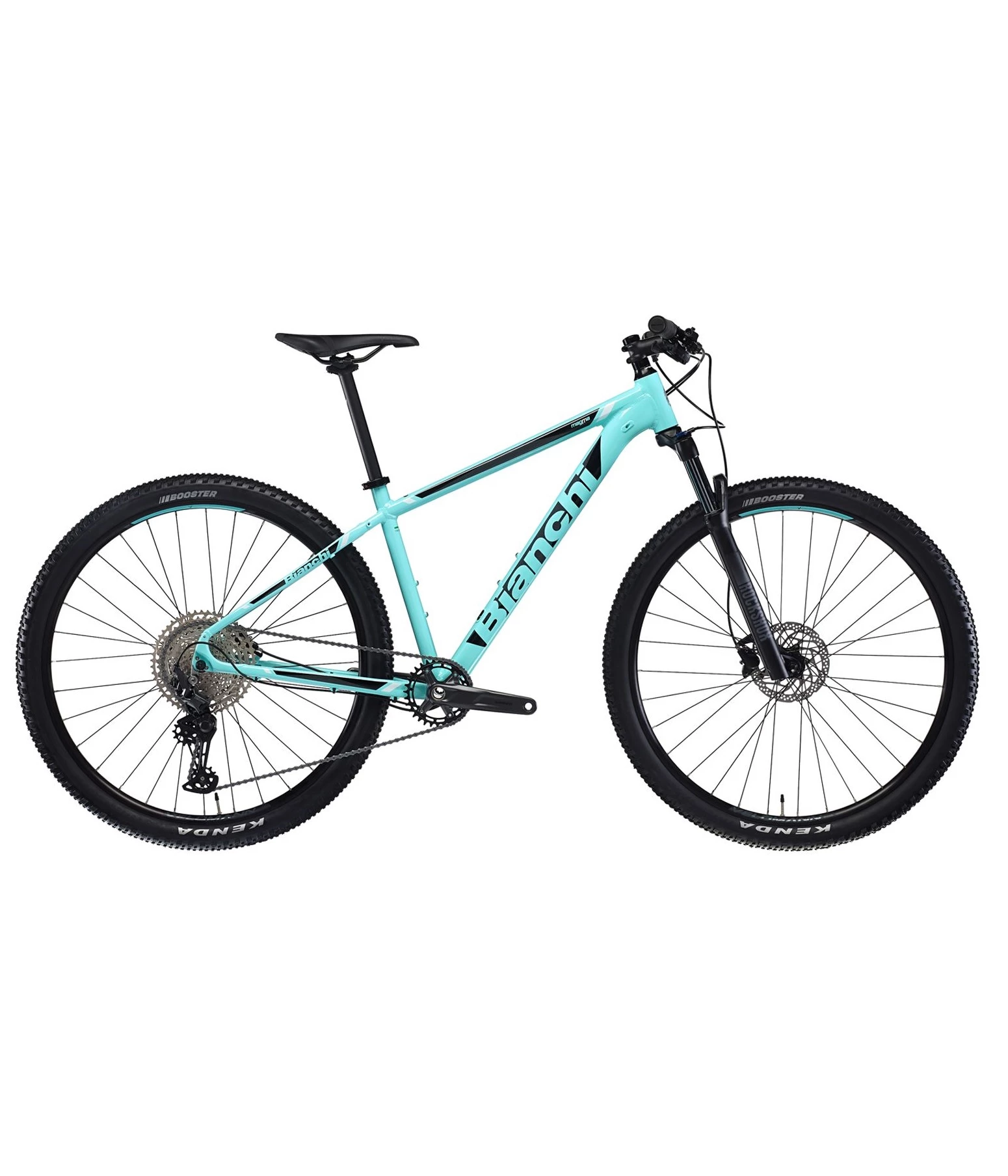

MTB 29″ Bianchi Magma 9.S Boost 1×12-växlad

¤ Märke: Bianchi.
¤ Modell: Magma 9.S
¤ Typ: 29″ MTB.
¤ Storlekar: 43 – 48 – 53 cm
¤ Ram: Magma 29 alu, 1.1/8″ HT, BSA 68mm, seatpost diam. 27,2mm, HDM bottom pull or Side-Swing, PM 160mm, BOOST 9x141mm QR
¤ Framgaffel:  Rock Shox Judy Silver TK 29″ Solo Air 100mm
¤ Styrlager:  Fsa TH888 forged steel cups ID diam.34mm, stack height 12,8+11=23,8mm, w/15mm cap
¤ Växelreglage: Shimano Deore SL-M6100-R 1x12sp
¤ Bakväxel: Shimano Deore RD-M6100 12sp.
¤ Framväxel: –
¤ Vevparti: Shimano FC-MT511-1, 32T, crank length: 170mm-15″, 175mm-17/21″
¤ Kedja: Shimano CN-M6100 12sp.
¤ Kassett: Shimano CS-M6100-12, 12sp, 10-51T
¤ Bromsar: Shimano BR-MT200, resin pad
¤ Bromsskiva: Shimano SM-RT10, 160mm front & rear, Center Lock,  for resin pad only
¤  Fälg: VelomannDP2.5, 622x25c, pin joint, 32h, anodized, no eyelet, Presta valve hole
¤ Baknav: Shimano FH-MT410-B
¤ Framnav: Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR
¤ Däck: Kenda Booster 29×2.20, DTC compound, 30Tpi, wire, ETRTO 56-622
¤ Styrstam: Velomann 3D forged Alloy 6061, +/-7°, 1.1/8mm, diam. 31.8mm, ext: 80mm-15/17″, 90mm-19/21″
¤ Styre: Velomann Flat top DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweep
¤ Handtag: T-one T-GP48B, one piece grip, TPR material, 130 mm
¤ Sadelstolpe:  Velomann AL2014 shaft w/alloy head, diam. 27.2mm, 0mm seatback, length 350mm.
¤ Sadel: Velomann, steel rails, PVC soft touch cover, 140mm width
¤ Färg: Celeste
¤ Fraktklass: F
